FTTH Singlemode Duplex APC- LC APC E2000 Patch Cord 3.0mm Optical

Name: FTTH Singlemode Duplex APC LC APC E2000 Patch Cord 30mm Optical
Brand: CY COM
Price: 1 USD

FTTH Singlemode Duplex APC- LC APC E2000 Patch Cord 3.0mm Optical Manufactures

Brand Name : CY COM

Model Number : LC APC

Certification : ISO9001:2015 , RoHS

Place of Origin : Shenzhen , China

MOQ : 20

Payment Terms : L/C,T/T,Western Union payments for offline orders.

Supply Ability : 1 million connector / month

Delivery Time : 3-15 days

Packaging Details : PE bag

Model Name : E2000 APC- LC APC Patch Cord

Cable Color : Yellow Or Customized

Length : 1m,2m,3m Or Customized

Insertion Loss : ≤0.3dB

Return Loss : SM APC≥60dB

Connector : FC,SC,LC,ST,MPO

Contact Now

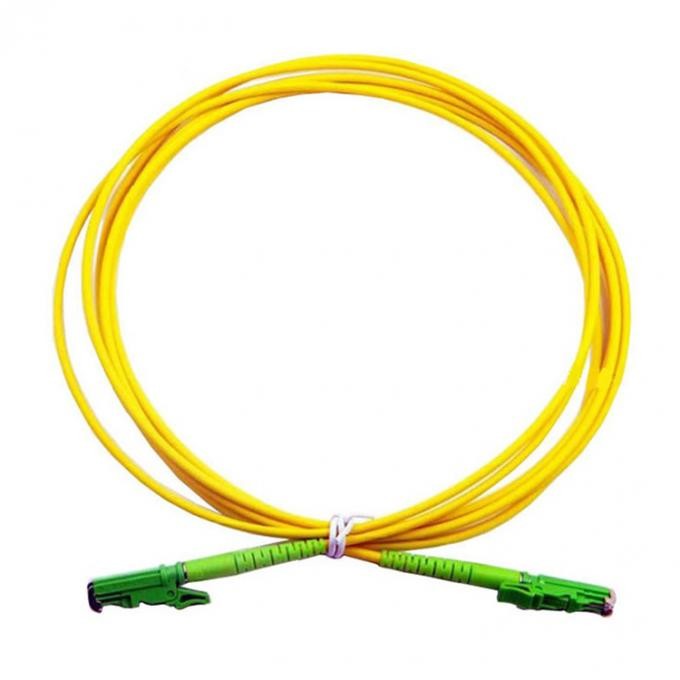

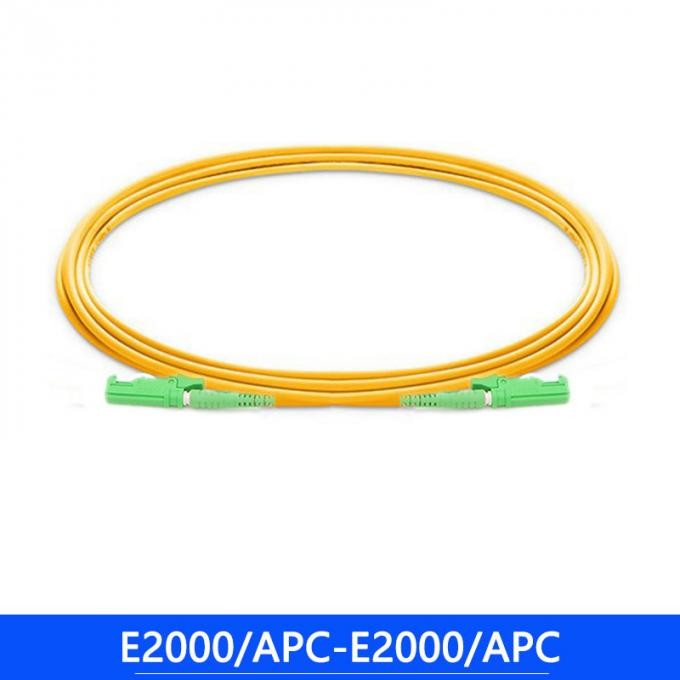

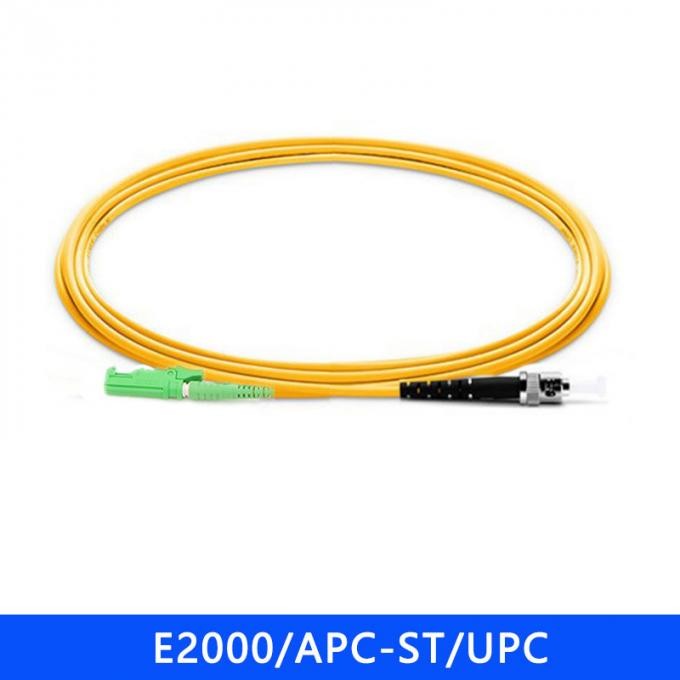

FTTH Singlemode Duplex E2000 APC- LC APC Fiber Optic Patch Cord 3.0mm Patch Cable LSH- LC Fiber Optical Jumper

E2000 APC- LC APC Fiber Optic Patch Cord 3.0mm Patch Cable LSH- LC Fiber Optical Jumper

Fiber optic patch cord is a fiber optic cable capped at both ends with connectors that allow it to be rapidly and conveniently connected to CATV, optical switch, or other telecommunication equipment. With a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box, which is known as "interconnect-style cabling".

Features:

Low insertion loss
High return loss
Good repeatability
Good interchange
Excellent environmental adaptability

Applications:

Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitting equipment
Defense combat readiness

Technical Specifications:

Connector Type	LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, MU/APC...etc...
Fiber Type	Single mode /Multimode
	50/125µm, 62.5/125µm (Multimode) OM2&OM1
	50/125µm, 10G (Multimode) OM3
Cable Type	Simplex, Duplex
	Φ3.0mm, Φ2.0mm, Φ0.9mm
	Jacket: PVC or LSZH
Insertion Loss	≤0.10dB (For Single mode Master)
	≤ 0.25dB (For Single mode Standard)
	≤ 0.25dB (For Multimode)
Return Loss (Single mode)	UPC ≥ 50dB
	SPC ≥ 55dB
	APC ≥ 60dB (typ.65dB)
Repeatability	±0.10dB
Operating temperature	-40°C ~ +85°C
Geometry Requirement (Single mode)	Ferrule End face Radius
	7mm ≤ R ≤ 12mm (For APC)
	10mm ≤ R ≤ 25mm (For Standard)
	Apex Offset ≤ 30μm (For Master)
	Apex Offset ≤ 50μm (For Standard)
	Undercut -50nm ≤ U ≤ 50nm

Products Options:

Cable Diameter	Connector Type	Fiber Type	Cable Type	Polish	Cable Length
0.9mm	LC	9/125µm SM	Simplex	PC	1M
2.0mm	FC	50/125µm MM	Duplex	APC	2M
3.0mm	SC	62.5/125µm MM	Multi-fiber	UPC	3M
	ST	OM3	Ribbon		5M
	MU	OM4			.........
	D4				Customized
	MTRJ
	MPO
	DIN

FTTH Singlemode Duplex APC- LC APC E2000 Patch Cord 3.0mm Optical
