Simplex Optical fiber optic pigtail , LC/APC singlemode 2.0mm yellow LSZH cable

Product Categories
Shenzhen CY COM Product Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

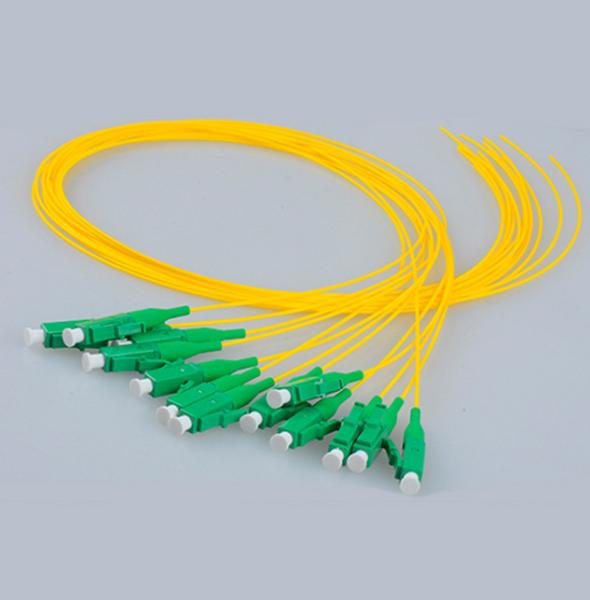

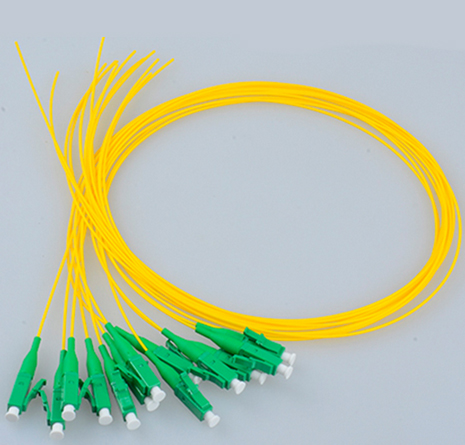

Simplex Optical fiber optic pigtail , LC/APC singlemode 2.0mm yellow LSZH cable

  • 1
  • 2

Brand Name : CY COM

Model Number : LC/APC sm simplex pigtail

Certification : ISO9001:2015 , RoHS

Place of Origin : Shenzhen , China

MOQ : 50pcs

Price : USD0.6-2.5/PCS

Payment Terms : L/C,T/T,Western Union payments for offline orders.

Supply Ability : 1 million connector / month

Delivery Time : 3-15 days

Packaging Details : PE bag

Cable type : Singlemode 9/125

Cable Color : Yellow

Diameter of cable : 0.9mm

Length : Can be customized

Contact Now

Optical fiber optic pigtail, LC/APC single mode 2.0mm 3Mtrs yellow LSZH cable​

►Characteristics:

--Good durability

--Good exchangeability

--High temperature stability

--Low insertion loss and back reflection loss
--Superior Quality Standard PC/UPC/APC Polishing

--Standard: Telcordia GR-326-CORE, TIA/EIA and IEC


►Technical Parameter:

Item Unit FC,SC,LC ST,MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC UPC PC PC PC UPC PC PC UPC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310,1510 1310,1510 1310,1510 1310,1510
Exchengeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable Diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9


►Order information:

•Fiber cores: 1, 4, 8, 12, 16... cores
•Diameter:0.9, 2.0, 3.0mm
•Length:1m, 2m, 3m to 120m
•Fiber: SM/OM1/OM2/OM3/OM4
•Material of jacket: PVC/LSZH/OFNR
•Connector: FC, SC, ST, LC, MU, MTJR, MPO, E2000
