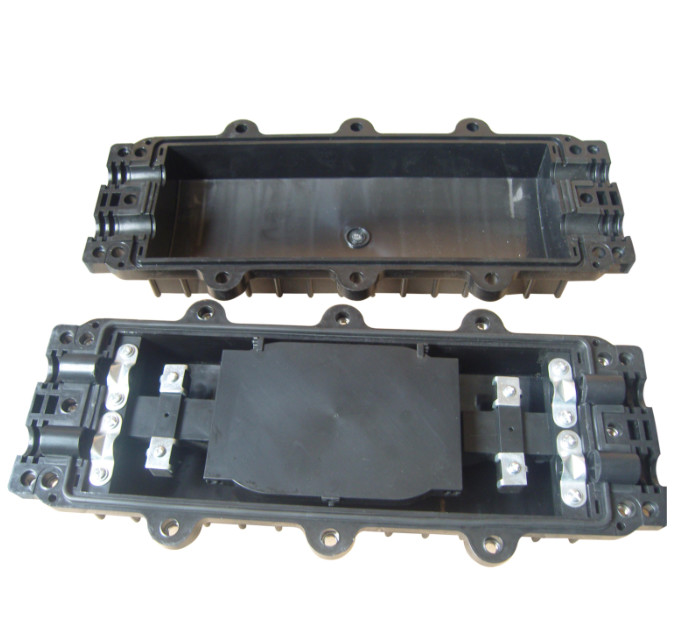

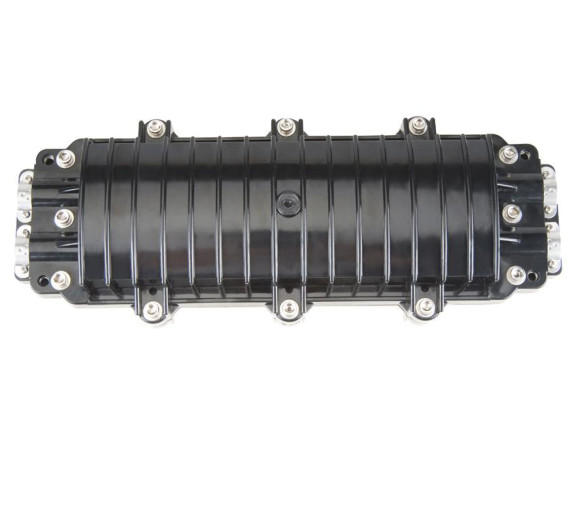

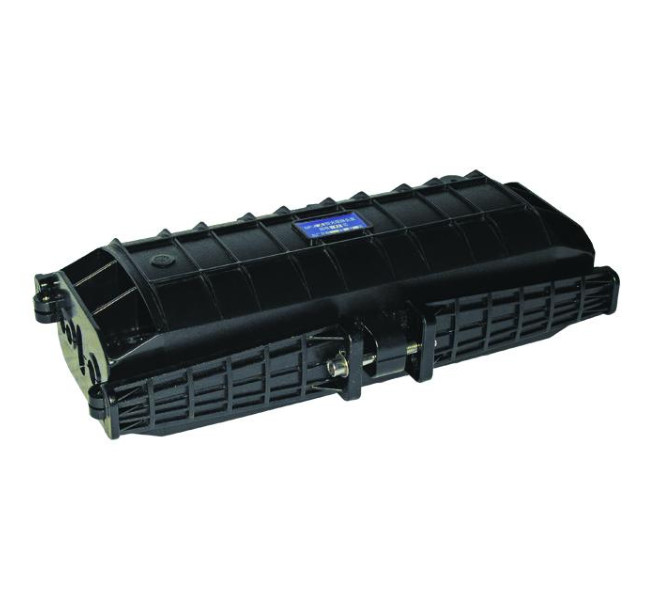

Horizontal PC material Fiber Optic Splice Closure , optical splice closure

Brand Name : CY

Model Number : GJS-203

Certification : ISO9001:2008, SGS, ROHS

Place of Origin : China

MOQ : 20pcs

Price : USD 13.9-14.5/PCS

Payment Terms : T/T, Western union

Supply Ability : 40000pcs per month

Delivery Time : in 5-10 days

Packaging Details : 5pcs/carton

IP : 68

Max capacity : 96 single fibers

Dimension : 400*250*150 mm

Material : PC

Contact Now

Horizontal PC material Fiber Optic Splice Closure , optical splice closure

►Features

Reliable gasket sealing
Easy installation with no special tool required
Re-enterable with no re-entry kit needed
High compressive strength

►Applications

Suitable for ribbon and bunchy fibers
Aerial
Cable duct
Direct burial

►Specification

Characteristics	Value/Performance	Methods and Conditions

Mechanical
Air Tightness	No air bubble seen	Put closure under water for 15min with closure's internal air pressure set at 100kPa±5kPa.
Air Tightness	Remains100kPa±5kPa	Measure the internal pressure 24 hours later
Air Tightness after re-installation	No air bubble seen and pressure remains unchanged	Do re-entry and re-installation 3 times and repeat above Air Tightness Tests.
Axial Pulling	Pressure remains unchanged	Pulling force: 1000N Time: 1min Internal air pressure: 60kPa±5kPa
Compression	Pressure remains unchanged	Applied pressure: 2000N/100mm Time: 1min Internal air pressure: 60kPa±5kPa
Impact	Pressure remains unchanged	Impact energy: 16N.m No. of impacts: 3 Internal air pressure: 60±5kPa
Bending	Pressure remains unchanged	Bending angle±45°(in two opposite directions) Tension: 150N No. of bending: 10 Internal air pressure: 60kPa±5kPa
Twisting	Pressure remains unchanged	Twisting angle: ±90° Torque: 50N No. of twisting: 10 Internal air pressure: 60kPa±5kPa
Thermal
Temperature Cycling	Pressure drop ≤5kPa	Cycling range: -40 ~ +60°C Cycling time: 2hrs at -40°C, then 2hrs at +60°C No. of cycling: 3 Internal air pressure: 60kPa±5kPa
Electrical
Insulation	Resistance between metal parts:2.0x10⁵MΩ	Soak closure into water in 1.5m-depth for 24hrs,and measure the insulation resistance after taking it out of water.
Insulation	Resistance between each metal part and ground:2.0x10⁵MΩ
High Voltage	No voltage break-downs and sparks	Soak closure into water in 1.5m-depth for 24hrs, then apply 15kV DC to the metal parts inside
