LC apc upc Fiber Optic Connector singlemode multimode blue beige green color

Name: LC apc upc Fiber Optic Connector singlemode multimode blue beige green color
Brand: CY COM
Price: 0.20 USD

LC apc upc Fiber Optic Connector singlemode multimode blue beige green color Manufactures

Place of Origin : Shenzhen , China

Brand Name : CY COM

Certification : ISO9001:2015 , RoHS

MOQ : 200pcs

Packaging Details : 5000units/cartern

Delivery Time : in 2-5 days

Payment Terms : L/C,T/T,Western Union payments for offline orders.

Supply Ability : 15000pcs per day

Model Number : LC

Price : usd0.20-0.32/pc

Color : Green,blue,beige

Ferrule type : LC APC/PC/UPC

Cable diameter : 0.9/2.0/3.0mm

Structure : simplex or duplex

Contact Now

LC apc upc Fiber Optic Connector singlemode multimode blue beige green color

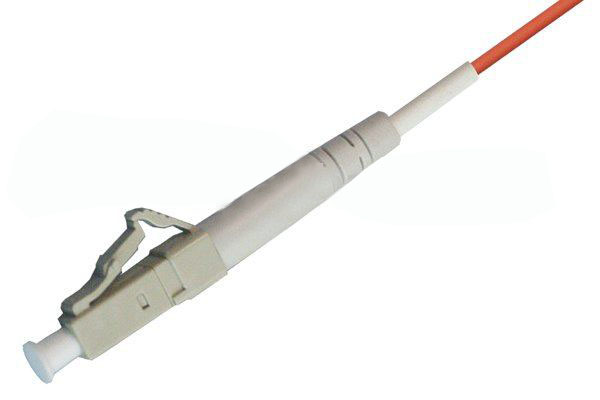

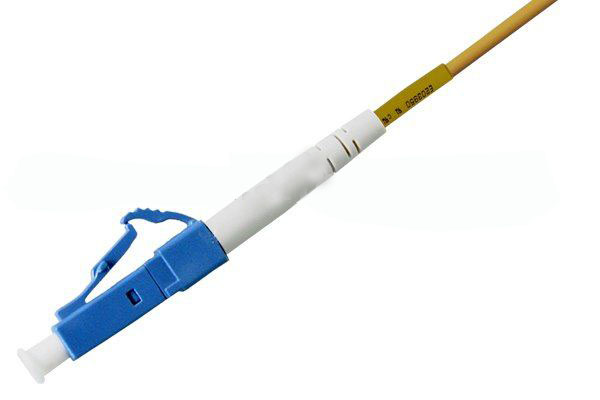

LC is a small form factor connector that uses a 1.25mm ferrule. It’s a standard ceramic ferrule connector, easily terminated with any adhesive.

Feature:

Low insertion loss and return loss
Free-floating ceramic ferrule
UL-rated plastic housing and boot
Boots in a variety of colors
High precision alignment

Availability:
-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
Housing kits without ferrule are available.
-PC and APC are available

Specifications:

Item	Single mode	Multi mode
Insertion loss	PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB	＜0.3dB
Return loss	PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB	＞25dB
Insert-pull test	1000(times) ＜0.2dB
Operating temperature	-40℃~ +80℃
Ceramic ferrule spec	125.5um concentricity deviations: ＜1um	127um concentricity deviations: ＜3um
Suitable fiber	PC/APC(9/125um)	PC(50/125um, 62.5/125um)

Application:

1. CATV, metro test equipment; FTTH;

2. Telecommunication networks;

3. Local area networks (LAN);

4. Wide area networks (WAN);

5. Premise installations;

6. Data processing networks;

7. Video and military active device termination.

8. Optical Distribution Frame

9. Optical Network Equipments

LC apc upc Fiber Optic Connector singlemode multimode blue beige green color
